Reducers Ts2-250, Ts2-300, Ts2-350, Ts2-400, Ts2-400P, Ts2-500, Ts2-650, Ts2-750, Ts2-1000
from Original price was: 40000 ₽.35000 ₽Current price is: 35000 ₽.
| Axis arrangement |
Parallel |
|---|---|
| Number of steps |
Two-stage |
Further information on gearbox dimensions, shafts, gear ratios, etc. can be found in the catalogue.
Cylindrical two-stage horizontal special crane gearboxes type Ts-2
are designed for use in drives of lifting and travelling mechanisms
for hoisting cranes. They are used to increase torques and reduce speed. The gearboxes are used in areas with moderate climate (U version), dry and humid tropical climate (T version), placement categories 1, 2, 3, 4 (operation outdoors under a canopy, in closed rooms and rooms with regulated climate).
Conditions of application of spur gearboxes Ts2-250, Ts2-300, Ts2-350, Ts2-400, Ts2-400P, Ts2-500, Ts2-650, Ts2-750, Ts2-1000
- constant and variable load, single direction and reversible;
- work is constant and with occasional stops;
- Shaft rotation in any direction, speed of the high-speed shaft up to 1500 rpm
| Gearboxes type Ts2 | 250 | 300 | 350 | 400 | 400П | 500 | 600 | 750 | 1000 | |
| 600; 750; 1000; 1500 | ||||||||||
| 250 | 300 | 350 | 400 | 500 | 650 | 750 | 1000 | |||
| Gear ratios | Nominal | 8; 10; 12,5; 16; 20; 25; 31,5; 40; 50 | ||||||||
| Actual | 8,3; 9,8; 12,41; 16,3; 19,88; 24,9; 32,42; 41,34; 50,94 | |||||||||
| Efficiency factor | 0,96 | |||||||||
| Oil volume at jet lubrication, l/min | 86 | 138 | 210 | 315 | 290 | 500 | 1100 | 1650 | 3700 | |

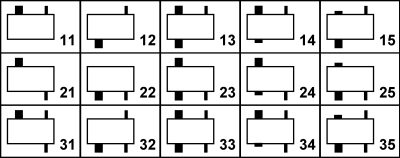

Assembly options*:
*Gearboxes with shaft ends as part of a toothed coupling are manufactured according to assembly variants 11, 12, 14, 15, 21, 22, 24, 24, 25, 31, 32, 34, 35.
The following oil grades are recommended to be poured into the gearbox housing: IRp-75 TU 38.101853-83; I-40A GOST 20799-88; TAP-15V GOST 23652-79; TAD-17 GOST 23652-79; LSZp TU38-1011267-72; TS-10-OTP GOST 23652-79; LSZp-6 TU38-1011267-72; TSp-10 GOST 23652-79.
|

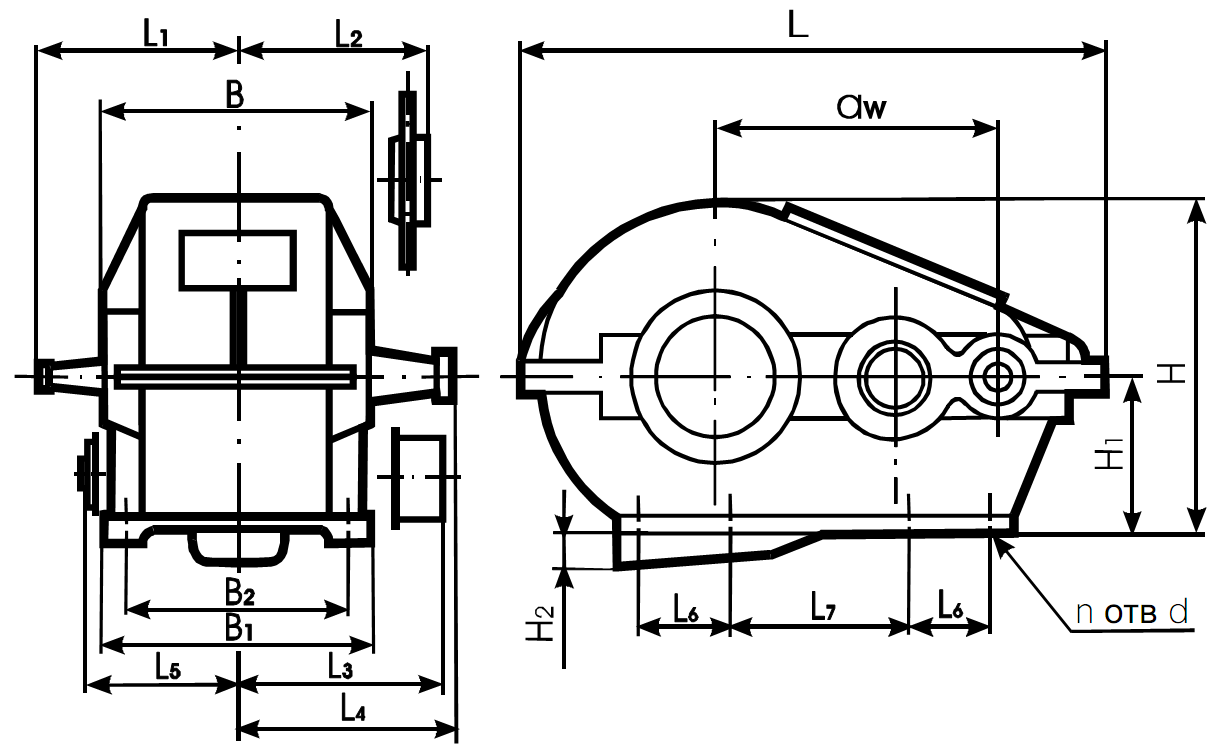

Type |
аw |
В, B1 |
B2 |
L |
L1 |
L2 |
L3 |
L4 |
L5 |
L6 |
L7 |
Н |
Н1 |
Н2 |
n |
d |
Weight
(without oil), kg |
| Ц2-250 | 250 | 260 | 210 | 515 | 220 | 198 | 255 | 280 | 145 | 0 | 285 | 310 | 160 | - | 4 | 22 | 86,0 |
| Ц2-300 | 300 | 300 | 250 | 620 | 255 | 227 | 280 | 300 | 165 | 0 | 350 | 362 | 190 | - | 4 | 26 | 138 |
| Ц2-350 | 350 | 330 | 280 | 700 | 300 | 255 | 320 | 345 | 180 | 200 | 0 | 409 | 212 | - | 6 | 26 | 210 |
| Ц2-400 | 400 | 380 | 320 | 805 | 325 | 280 | 350 | 375 | 205 | 250 | 0 | 505 | 265 | - | 6 | 33 | 315 |
| Ц2-500 | 500 | 440 | 360 | 985 | 390 | 330 | 415 | 445 | 235 | 320 | 0 | 598 | 315 | - | 6 | 39 | 500 |
| Ц2-650 | 650 | 560 | 470 | 1270 | 480 | 410 | 510 | 550 | 295 | 260 | 260 | 695 | 315 | 95 | 8 | 39 | 1100 |
| Ц2-750 | 750 | 650 | 560 | 1455 | 570 | 480 | 595 | 645 | 340 | 300 | 300 | 783 | 355 | 100 | 8 | 46 | 1650 |
| Ц2-1000 | 1000 | 860 | 760 | 1905 | 740 | 645 | 745 | 805 | 445 | 400 | 400 | 1018 | 450 | 155 | 8 | 52 | 3700 |
